Designfab

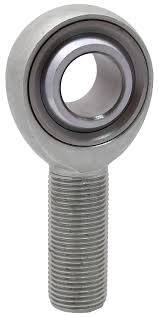

3/4" Heim Designfab 3 piece

3/4" Heim Designfab 3 piece

Regular price $36.00 AUD
Regular price Sale price $36.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Thread

3/4 threaded shank with 3/4 hole

The heim housing is made from an Alloy Steel with a bright chrome polished finish. Ball is made from bearing steel and heat treated and hard chrome finished. Race is made teflon lined with kevlar reinforcement. This increases the working life of the heim joint. These heims have a far superior radial static load compared to your non heat treated heims or your rose joints. The 3 piece rod end also has far superior lateral loading caratoristic in comparison to a 2 piece rod end. If your rod end is likely to experience heavy side loading a 3 piece joint will our last a 2 piece rod end. All heims have a UNF thread.
All heims will come with a jam nut.

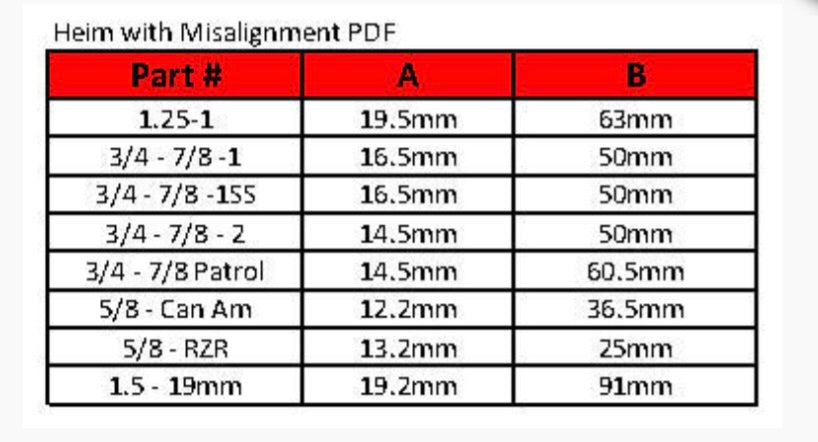

Size Width with Misalignment spacers

50mm or 60.5mm

Size Misalignment bolt hole size
 16mm or 14mm

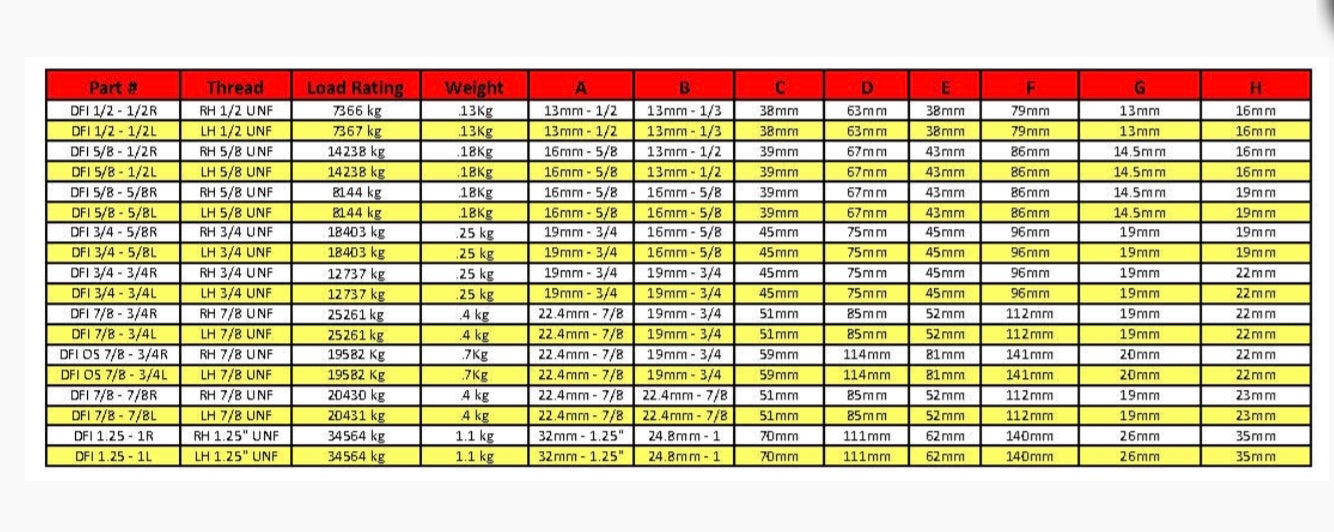

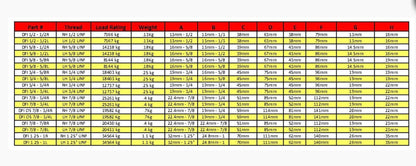

Size Static Radial Load
12737 kg
