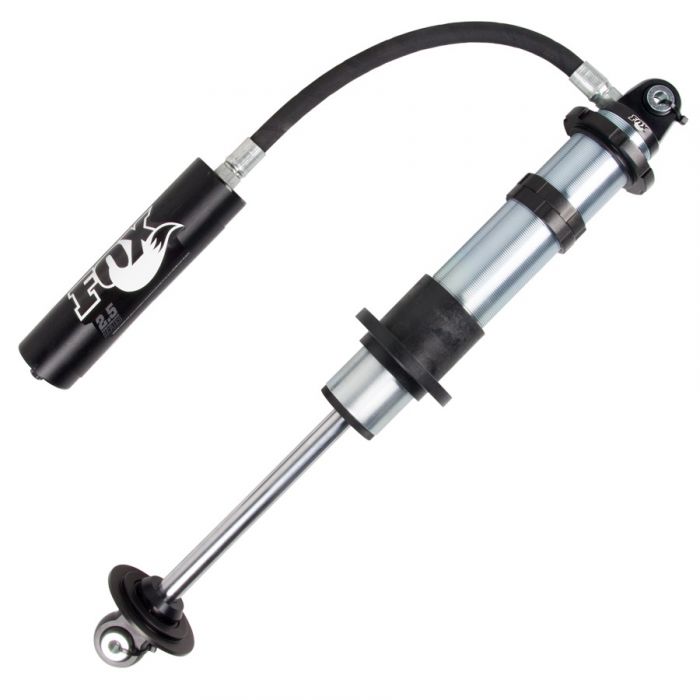

Fox Performance Series 2.5" Coilover Remote Res

Fox's Off-road Performance Series coil-over shocks take advantage of their tried and-true coil-over design and incorporates features like rubber braided steel hoses with high-flow fittings for improved durability and performance.

Pinch-bolt spring preload rings allow easy ride height and preload adjustment and retain the top quality racing coil selected to deliver your optimal spring rate. Fox's off-road Performance Series coil-over shocks will suspend your vehicle’s weight and provide their race-proven, performance damping technology to tame the toughest terrain. If you are looking for a comfortable ride and predictable off-road handling, look no further..

Shock Family Features:

• Body - Smooth bore and honed seamless steel

• Body Plating - Zinc plated for a long-lasting finish

• Components - Black anodized, CNC machined 6061-T6 billet aluminum

• Piston - Race developed high flow design

• Valving - Tunable, velocity sensitive deburred valve shims

• Hose - -8 ORB O-ring port hose fittings for superior seal with remote reservoirs

• Seals - Redundant sealing pack system, main seal, wiper seal, scraper seal

• Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures

• Shafts - 7/8" hard chrome plated, heat-treated alloy steel

• Bearing - Spherical -10 series, PFTE-lined, heat-treated alloy steel

All coil-over shocks come with required spring hardware, including lower spring retainer, upper pinch bolt, spring slider/divider, and dual rate cross over rings.

Each shock includes 2 rubber reservoir mounting blocks and 2 stainless steel worm drive hose clamps. Typical mounting locations for the reservoir include to the body of the shock or to cage tubework

• 1.50" mounting width with 1/2" bolt

• Fox 50/70 valving
