We have dialled in these brackets on our K24 powered rock crawler.
Made from billet 6061 alloy, and the choice of two mounting locations depending on set up. Both brackets suit LS, PSC or Howe style TC/CBR/SPX steering pumps and both come with mounting bolts to the block. (we can also provide pumps)

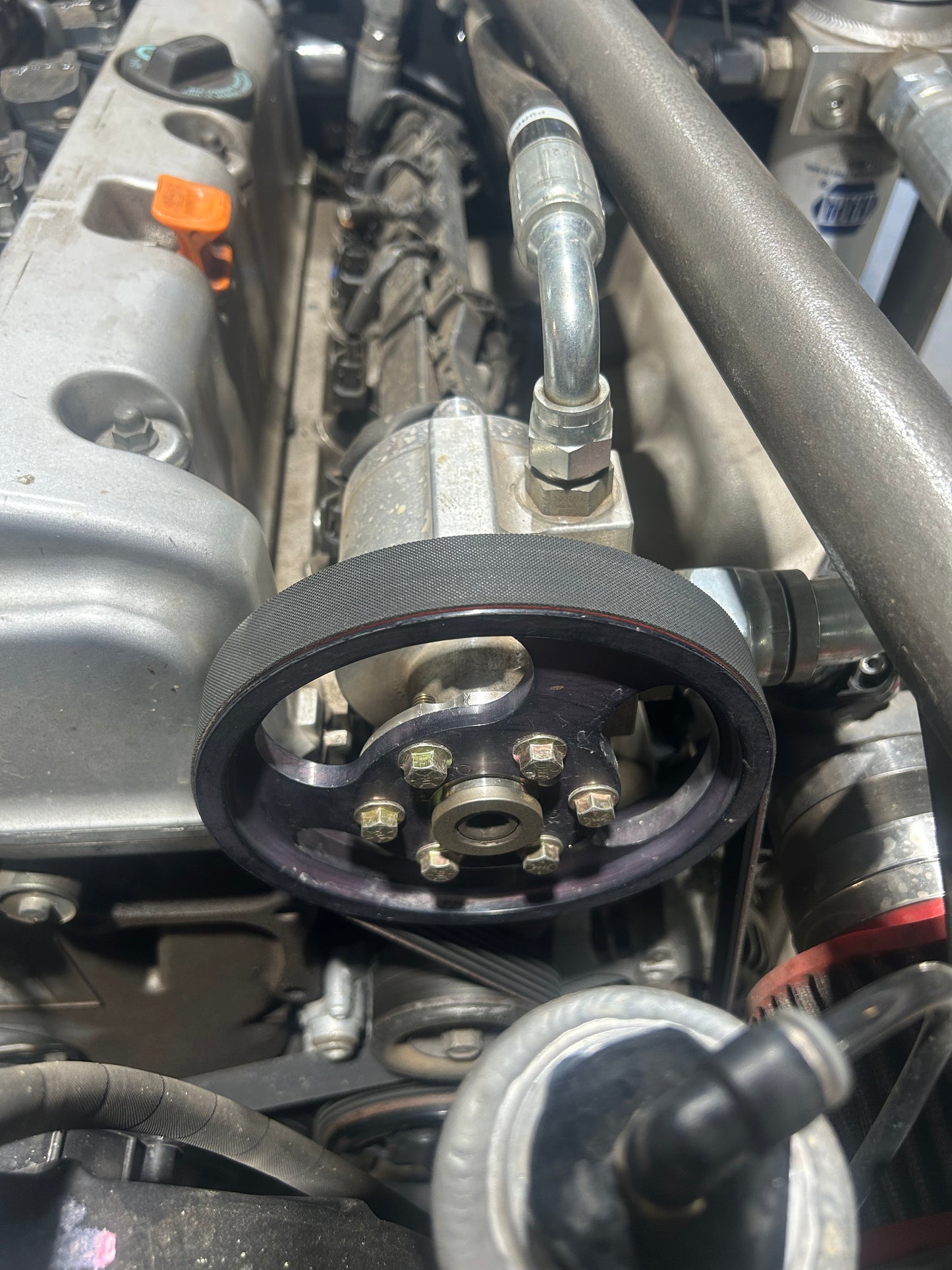

RWD intake (crank pulley facing) has the pump tight to the rocker cover, some minor shaving of the cover may be required for clearance of the pulley. Fits up to a 6” pulley. Keeps the pump clear of throttle body sensors and plugs, while also providing clearance for aftermarket fuel rails at the rear. (This bracket will also work with FWD intakes)

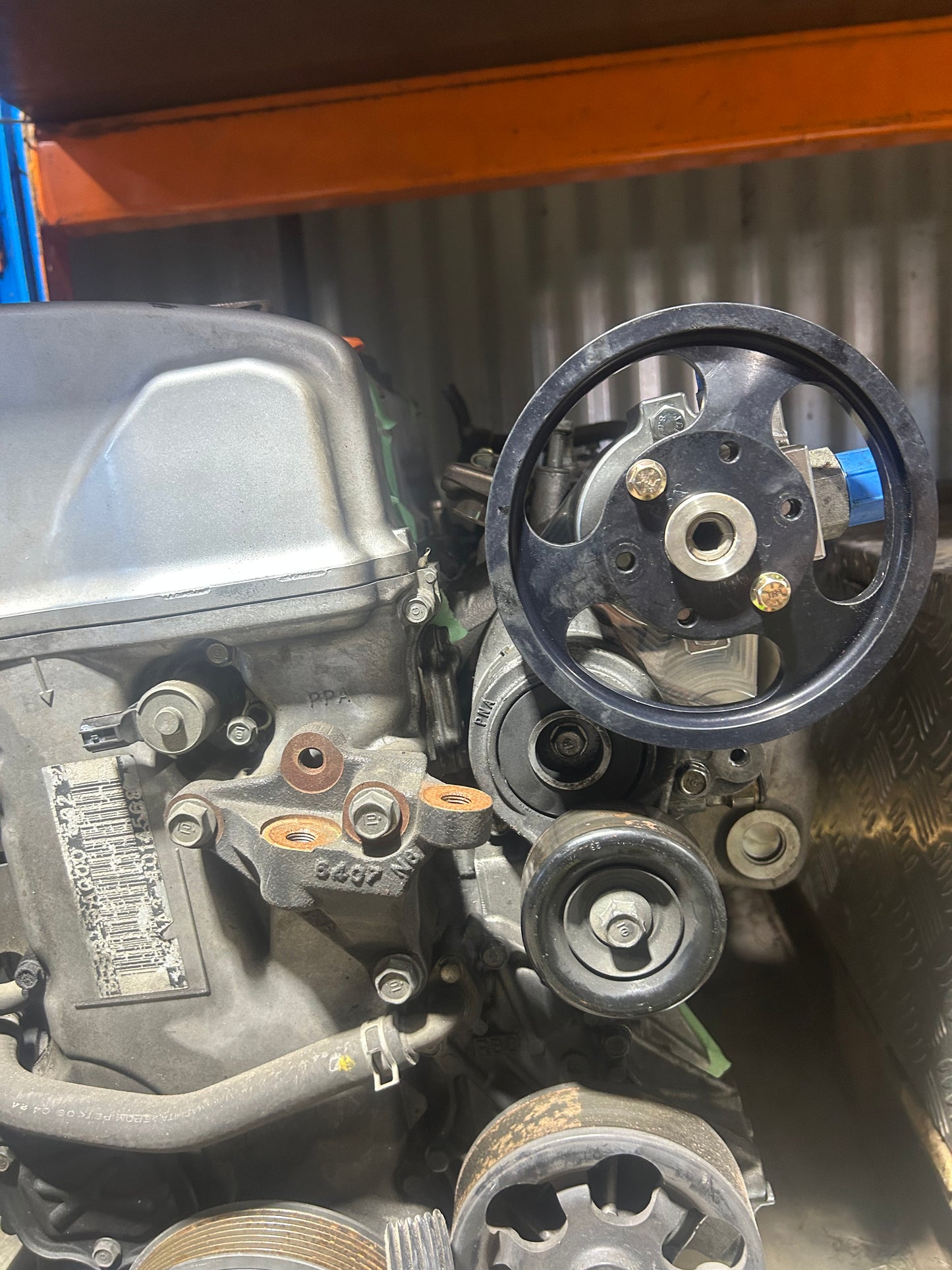

FWD intake/stock (bellhousing facing) has the pump mounted further to the right of the block for easier access and lower height profile.
*not all set ups/combinations are the same, we have allowed as much room as possible for each style and checked clearances but as with any parts being fitted to a modified car further modifications may be required.
