SCS Gearbox
SCS Transfer Case
SCS Transfer Case
Straight Thru Transfer Case
Quick Change Straight Thru Transfer Case
Compact unit, 10.666 C/L
10 ¼” Flange To Flange
90 lbs
Billet Aluminum Case
Super Strong Ground Gearing
<head><meta charset="UTF-8" /></head>

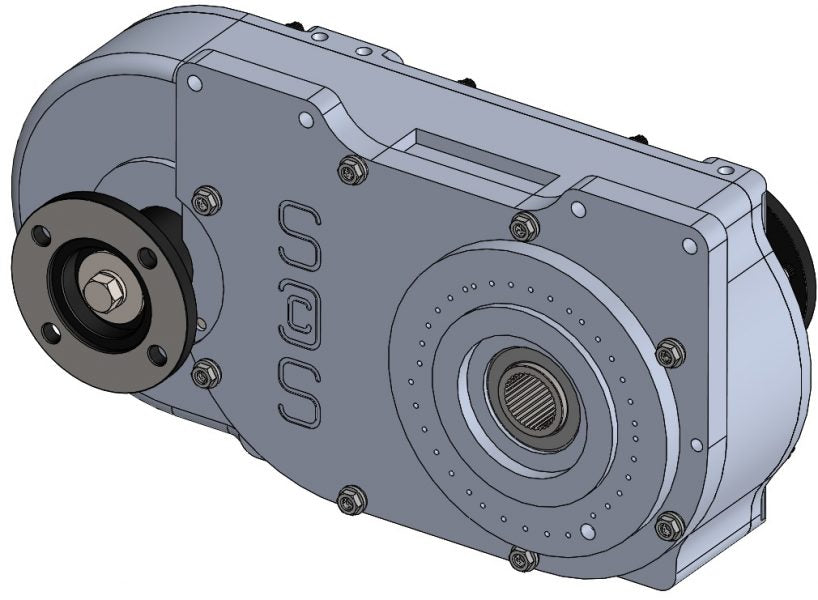

Quick Change Straight Thru Transfer Case
9” high, 20” case length. Clockable left and Right top side mounting to maximize ground clearance.
Supplied with universal 1350/1410 companion flanges Input and rear output
Front output uses 9” ford pinion yoke 1310/1330/1350
Compound quick change gearing, 2.64 overdrive to 2.64 underdrive.
Each quick change set nets two ratios, except 1 to 1 set
Gear ratio examples: 2 gear Q.C. set 1.56 ratio x 3 gear rear set 1.56 = 2.43 Change Q.C. set to 1.52 ratio x 3 gear rear set 1.56 = 2.37. Change Q.C. set to 1.462 ratio x 3 gear rear set 1.56 = 2.28 flip Q.C. set 1.56 ratio to OVERDRIVE x 3 gear rear set 1.56 = 1 to 1
Contact Us For Price And Availability
