Synergy
Synergy Dual Durometer Bushings
Synergy Dual Durometer Bushings
Regular price
$130.00 AUD
Regular price
Sale price
$130.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

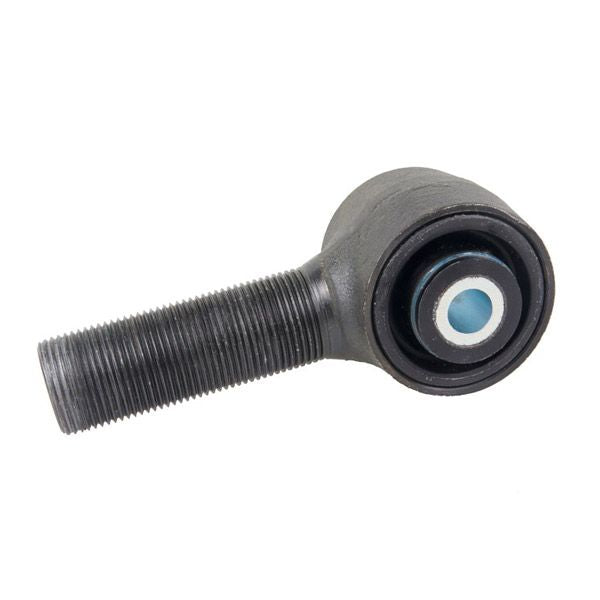

Synergy Dual Durometer Bushings (DDB) in a forged housings have all the benefits of Synergy's Dual Durometer Bushings in a forged housing package. These are available for all Synergy products that use a Johnny Joint or rod end. See table for applications and specs. May be compatible with other products.
Features:
- Dual Durometer Bushings (DDB) feature a maintenance free, grease less design
- Housings are forged from high strength 1045 steel and treated for corrosion resistance
- Control arm bushings are self centering with 30 degrees of misalignment
- Outer "soft" durometer acts as bushing cushion and flex material
- Inner "hard" durometer lining acts as the bearing surface to allow free floating inner sleeve to rotate.
- Provides for a maintenance free "zero bind" bushing
- Internal bushing ring separates inner and outer materials to prevent inner sleeve gaping at extreme flex
- Direct replacement available for Synergy products using a Johnny Joint or rod end
- Available complete with bushing installed
- installed
| Part # | Description | Mounting Width | Bolt Size | Shank | ||
|---|---|---|---|---|---|---|
| SYN-4800-01 | Lower Control Arm Joint | 2.625" | 9/16" / 14MM | 1 1/4-12 LH | ||
| SYN-4800-02 | Dodge Lower Control Arm Joint | 2.625" | 5/8" / 16MM | 1 1/4-12 LH | ||
| SYN-4801-21 | Upper Control Arm Joint | 2.32" | 9/16" / 14MM | 1-14 LH | ||
| SYN-4801-22 | Jeep JK Rear Upper Control Arm Frame Side Joint | 2.625" | 9/16" / 14MM | 1-14 LH | ||
| SYN-4802-31 | Jeep Track Bar Joint | 1.60" | 9/16" / 14MM | 3/4-16 LH | ||
| SYN-4802-32 | Jeep Track Bar Joint | 1.60" | 1/2" / 12MM | 3/4-16 LH | ||
| SYN-4803-41 | Dodge Track Bar Joint | 1.60" | 9/16" / 14MM | 7/8-14 LH | ||
| SYN-4803-42 | Dodge Track Bar Joint | 1.60" | 5/8" / 16MM | 7/8-14 LH | ||
| SYN-4804-21 | Dodge Front Upper Long Arm Joint | 2.32" | 9/16" / 14MM | 1 1/4-12 LH | ||
| SYN-4805-12 | Jeep TJ Rear Upper Control Arm Joint | 2.00" | 10MM | 7/8-14 LH | ||
| SYN-4807-01 | Jeep JK Front Lower Short Arm Frame Side Joint | 2.625" | 9/16" / 14MM | 1 1/4-12 LH @ 6.3 DEG ANGLE | ||
| SYN-4807-02 | Jeep JL Front Lower Short Arm Frame Side Joint | 2.625" | 5/8" / 16MM | 1 1/4-12 LH @ 6.3 DEG ANGLE | ||
| SYN-4808-21 | Jeep JK Rear Upper Short Arm Axle Side Joint | 2.32" | 9/16" / 14MM | 1-14 LH @ 6.3 DEG ANGLE | ||
| SYN-4810-01 | 13+ RAM Track Bar Joint | 1.63 | 18MM | 1-14 LH @ 12 DEG ANGLE | ||
| SYN-4811-01 | Jeep Track Bar Joint | 1.60" | 9/16" / 14MM | 7/8-14 LH | ||
| SYN-4812-21 | Jeep Track Bar Joint | 1.60" | 9/16" / 14MM | 7/8-14 LH @ 12 DEG ANGLE |
